How To Import 3D Twinkly Models Into xLights

One of the most powerful things Twinkly lights are capable of is using your phone camera to create “free-form” 3D models of your lights (this also works for 2D models). You can throw Twinkly Strings on a bush or wrap a tree, and in a few minutes use your phone to map the lights. Normally, Twinkly expects you to use that model with their app to create effects with the lights — which works fine, but is not really a light show. That 3D map is stored on the controller for that Twinkly device, and can be imported into xLights into a custom model, so you can add it to your light show and apply effects to it. Here’s how to do it.

1. Using the Twinkly app on your phone, capture the 3D model of the set of lights
   • Follow the instructions in the app
   • Use a tripod!
   • Individual pixels will turn green when they have been successfully captured; others may show orange or red that it couldn’t register
   • Depending on the shape and complexity of the object you may need to take a number of photos
   • It is not critical that ALL of the pixels turn green — just the majority
   • When the map is all or mostly green, make sure it looks good in the rendering in the app, then save it
2. Ensure the Twinkly controller is powered up and on your network (lights don’t need to be on)
3. Open xLights on your computer and go to the Layout Tab (must be on same network as lights)
4. Create a new custom model, by clicking the custom icon (6th from the left) at the top of the layout visualization pane
   • After clicking “custom” icon, click and drag in the visualization to add the empty model (will show up as a square)
   • Don’t worry about positioning it or sizing it yet — can be anywhere
5. On the left in the “models” list, you should see a new model called “custom” – click on it if not already highlighted
6. Rename the model to whatever you want
7. Under “model data”, click the ellipsis (3 dots) to modify the model (which is currently empty)
8. Click “Import From Controller”
9. Choose the Twinkly controller containing the model
10. Click “OK”
11. Make sure the model looks correct in the visualization at the bottom
12. If it looks “cut off” (parts are missing), you may need to manually adjust the width, height and depth of the model
    • Before you do this, we need to erase what’s there — because if you import again, it will import on top of any existing data
    • Set the depth to 1
    • Click the box in the top right corner of the matrix to select all and hit delete
    • Set the width, height and depth to something appropriate to hold your model (may need to experiment with this step more than once) — will be based on how many lights on string and how they are strung

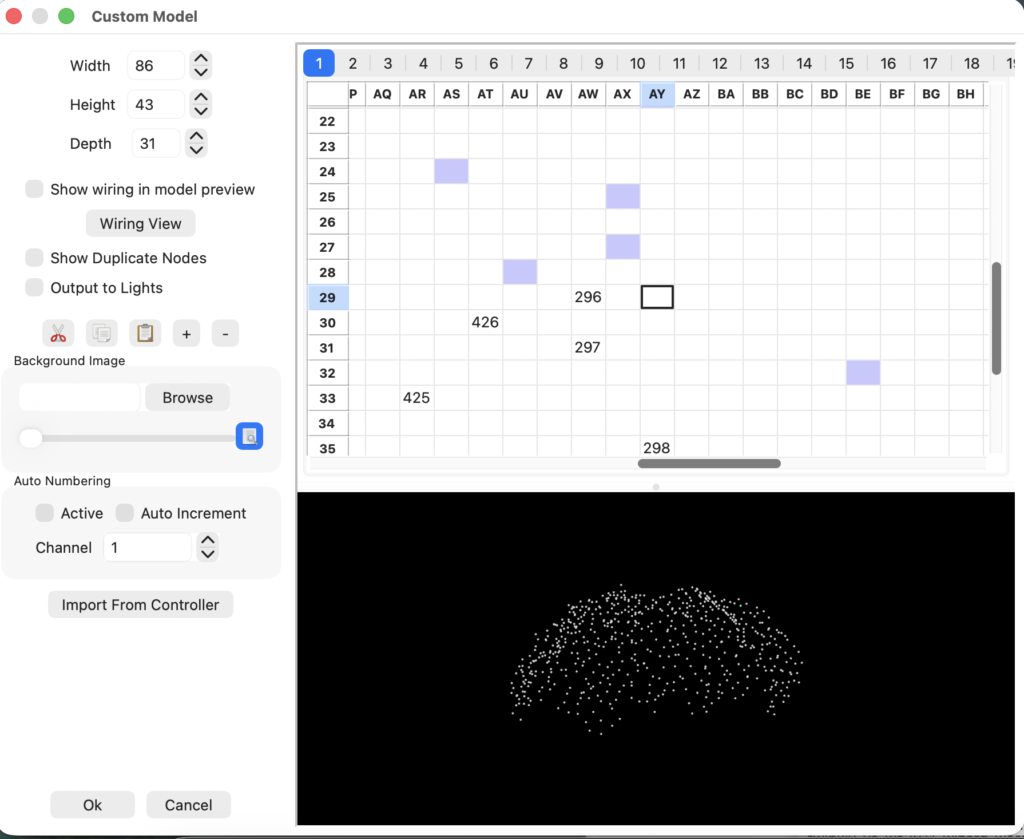

13. When the model looks good, click OK (should look something like image below — 600 string on a small tree)
14. Position and size it where you want it in the layout like any other model
15. Finish setting up the model like you normally would (set controller or start channel, etc)
16. Hit “Save”
17. Throw the model into a test sequence and test it out to make sure it is rendering correctly
    • Test left to right sweep
    • Test upward or downward sweep
18. If tests look backwards, you may need to rotate or flip the model in the layout so they work correctly
19. Once everything looks good, save it again and you are good to go!
